Momentum M-10 10kw long shaft outboard motor with Battery

£8,400.00 inc. VAT

Available on back-order

SKU: M10LS Category: Momentum Brand: Momentum

52cm long shaft model

Name: Momentum M-10 10kw long shaft outboard motor with Battery
Brand: Momentum
SKU: M10LS
Availability: BackOrder

Custom-designed high efficiency prop, made from durable marine grade aluminium. Comes with adjustable resistance throttle with power unlock/reverse safety button and a custom-designed quick release mount interface.

TECHNICAL M-10 ELECTRIC OUTBOARD MOTOR

MAX INPUT POWER

10KW

SHAFT LENGTH

52cm long

Prop diameter

34cm

No. of blades

Cooling system

100% external passive seawater

Trip computer

Integrated GPS power and range display

Weight

OBM + Prop: 22kg, Mount: 6kg

Integrated trip computer with high-contrast color display
Custom-designed single cable power and data connection
Custom-designed high efficiency prop, made from durable marine grade alluminium
Passive cooled fully sealed ESC and motor
Custom-designed quick release mount interface
Adjustable resistance throttle with high-power unlock button
Integrated fold-back tiller

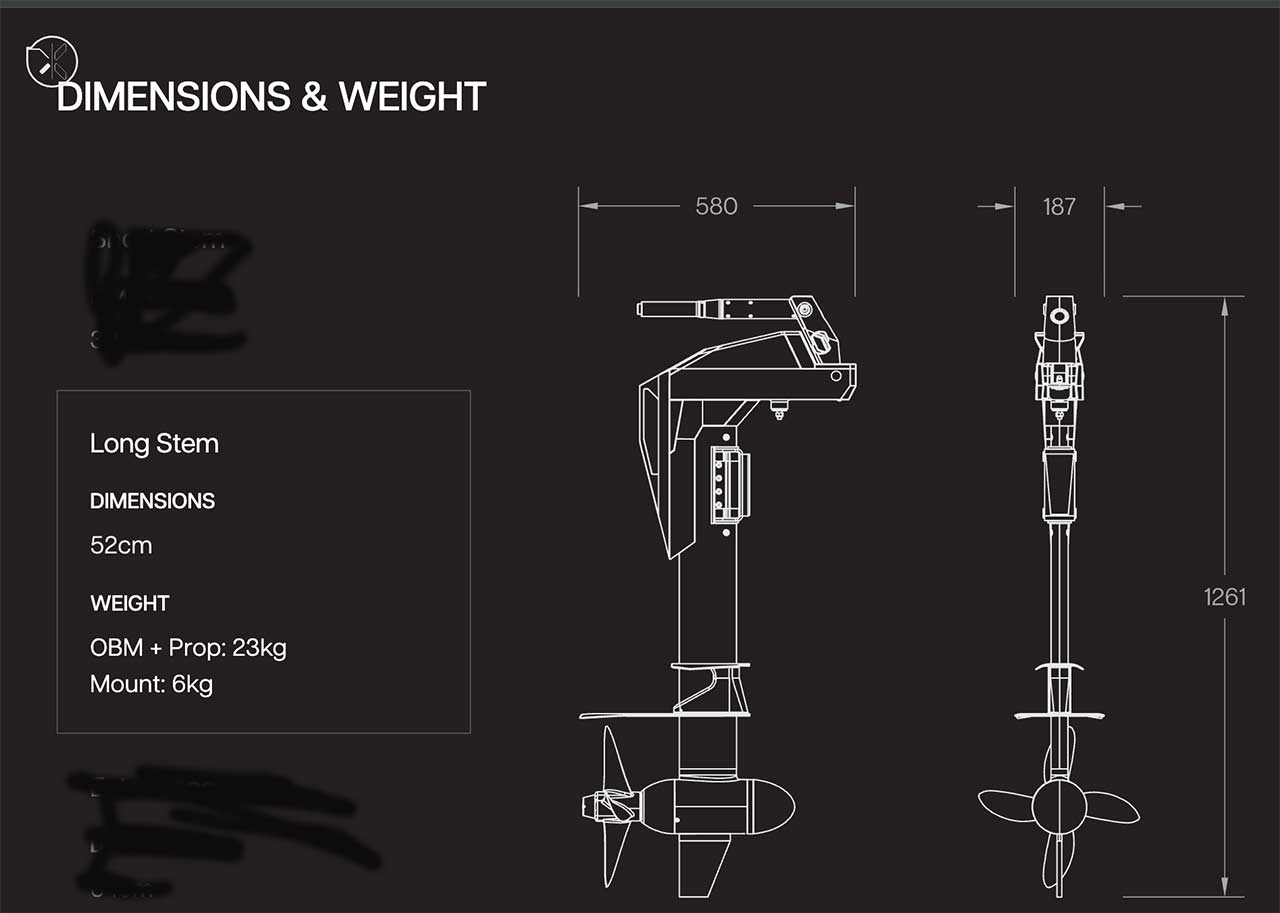

Dimensions

Integrated Screen

Our high-contrast integrated colour screen gives you key information at a glance, even in bright sunlight.

Multi Position Mount

Mount your Momentum OBM in seconds and easily adjust trim with our single-lever action. This is the easiest OBM in its class to install and remove. Leave it mounted on your boat, store it below deck or bring it home with you. Our mount is also compatible with a wide range of common remote steering setups for remote helm operations

Safety

Fully integrated Can-Bus interface between the OBM, Battery and Throttle ensure safe seamless operation. A magnetic kill switch, custom IP-rated waterproof connectors and battery give you peace of mind in the worst conditions. Our multi-function tiller with reverse and power mode lockouts make it intuitive for first time users.

MB-6 Battery

The MB-6 battery fits into a typical fuel locker and packs power to last. The impact-resistant case and CNC aluminium handle make the battery offer robust handling and are waterproof. The proprietary Battery Management System (BMS) has all the built-in safety features to ensure the safety and health of the battery cells. The BMS also communicates with the OBM to ensure that it only provides full power when the kill switch is on, to protect the user and the battery. A simple push button on the battery activates standby mode and displays the battery level, as well as any fault codes that may arise.

TECHNICAL MB-6 BATTERY

CAPACITY

6.4kWh

Voltage

72 VOLT

Cell type

Li-ion NMC prismatic

Cycle life

>1500 cycles to 80% capacity

Weight

37kg

The Momentum MB-6 battery is designed to fit into most fuel lockers, out of the way of the user in space-constrained situations.

Whats in the box

Momentum M-10 OBM with multi-position tiller and trip computer

Quick-release transom mount

Battery charger

Kill switch x2

Custom aluminium 4-bladed propeller

Integrated power and data cable

Instruction manual

Prop tool

Momentum M-10 10kw long shaft outboard motor with Battery

52cm long shaft model
