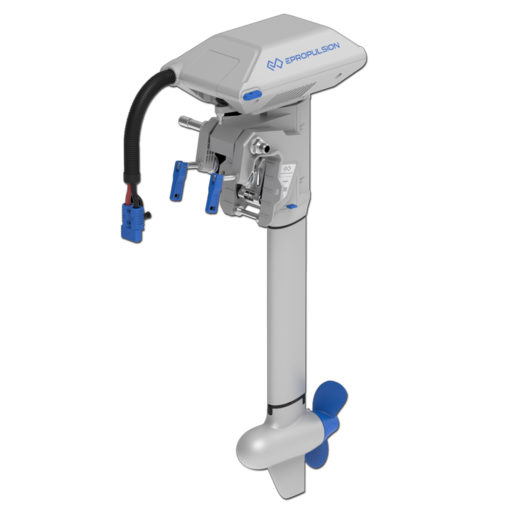

ePropulsion Navy 6.0 Evo Long Shaft electric outboard
The Navy 6.0 Evo long shaft is ePropulsion’s most powerful electric outboard engine, ideal for motorboats, yachts, RIBs and workboats up to 6 tonnes
9.9HP | Ultra-Low | Closed-Loop |
Equivalent Propulsive Power | Maintenance | Liquid Cooling |
The ePropulsion Navy 6.0 Evo is the option when you need a boost for your boat. Featuring an advanced cooling system usually equipped on only the wildest outboard beasts – Its ready for any water challenge.
Boasts incredible features – Maintenance-free and remarkably quiet. Working with ePropulsion’s exclusive Navy battery it delivers great performance and it also offers the convenience of the max battery parallel connection, which is up to a total of 8 battery packs for extended range.
Performance – Ready for Tough Tasks
Efficiency | 9.9 HP | 27 KM/H |
Up to 57% max overall efficiency | For motorboats and sailboat up to 6 tonnes | Max speed to drive a 12 ft boat with 150 kg load |
The ePropulsion Navy 6.0 is the right choice for when you need a powerful electric outboard motor. The 6kW motor can remain at the max output for hours. It’s sure to impress with its great performance!
Incredibly Versatile
The impressive performance makes the Navy 6.0 outboard motor extremely versatility suitable for all types of environments
Aluminium Boat | Transportation Boat | Sailboat | RIB | Pontoon |
River | City Canal | Marina | Inshore | Lake |
Incredible Efficiency
ePropulsion Navy 6.0 has incredible efficiency up to 57%. Its 6kW electric motor can deliver the propulsive power equivalent of a 9.9HP petrol engine
ePropulsion Navy 6.0 | 9.9HP Petrol Outboard | |
Input Power | 6 kW | N/A |
Output Power | N/A | 7.5 kW / 9.9 hp |
Maximum Overall Efficiency | 57% | 31% |
Maximum Effective Power at Propeller | 3.1 kW | 2.4 kW |
Range
1 Hour | 40KM | 8 Packs |
Running time at full speed with two batteries | Range at economical speed with two battery | Max parallel connection allowed for ePropulsion Navy Battery |
The range is a big challenge for any electric drive system. ePropulsion push the range limit through propeller design, smart battery management, terrific battery capacity in a compact size, motor housing CFD, and more.
Performance Table | |||
Speed(knph / knot) | Range (km / nm) | Running Time (hours) | |
Slow Speed | 7.2 / 3.9 | 72 / 39 | 10 |
Economical Speed | 10.2 / 5.5 | 40.8 / 22 | 4 |
Full Speed | 27 / 14.6 | 27 / 14.6 | 1 |
* ePropulsion Navy 6.0 outboard with 2 x Navy batteries. Motorboat and sailboat up to 6 tons.
** The performance data is based on a 12-foot aluminium boat with one ePropulsion Navy 6.0 and 2 x Navy batteries. The actual speed, range and running time may vary because of different boats, load, weather, etc.
Battery – Long-Lasting for Every Trip
Advanced BMS | 3042 Wh | Aluminium Unibody Housing |
Safety comes first: includes six protection features | Terrific capacity in a compact size | Robust and extremely thermally conductive |
The ePropulsion Navy battery is more than the outstanding capacity. It’s designed specifically for our Navy series and it is capable of discharging at maximum current for hours. It also looks good and performs even better.
Carefully Designed Battery Components
Each Navy battery contains a huge 31,218,650 cells in total. To best optimize performance and thermal dissipation a sophisticated battery array was designed to create a large capacity in a compact size.
Details
- Communication Port
The BMS controller reads the real-time battery status from this port and implements the best control strategy for performance. Each Navy battery has two for parallel connection - Handle
Two ergonomically designed handles are incorporated to enable safe carrying of the battery - Power Switch
Switch between sleep and working mode – Helping to preserve battery life - Aluminium Unibody Sealed Housing
Excelling at thermal dissipation and designed for long term saltwater environment protection includes an air vent located on the top of the housing to balance pressure
Closed-loop Liquid Cooling
The Navy 6.0 is the first ever outboard electric motor in mass production that is equipped with a closed-loop liquid cooling system which is usually found in those horsepower beasts.
Excellent Cooling
The motor stays at a safe temperature in any tough working conditions
Ultra-Reliable
A closed cooling system doesn’t require water intake, and so the entire cooling cycle stays within a closed circulation, meaning it’s more reliable
Reliability
Robust Design Built to Last
Maintenance-Free | 2,000 hrs in Testing | Direct Drive |
Save time at work and spend more time on the water | The most rigorous testing of continuous operation ensures a robust design | The amount of moving parts is reduced tremendously, including gear box |
The ePropulsion Navy 6.0 is a maintenance-free electric outboard motor. You’ll never need to worry about repairing or maintaining it. The quality and craftsmanship are second to none so you can relax and enjoy your time on the water!
Clean
Harmless to Health and Environment
No Fuel to Leak | Exhaust-Free | Less Carbon Emissions |
Leakage is quite common with a petrol outboard – not with the Navy 6.0 | You won’t breathe in any engine exhaust fumes | Reduce your carbon emissions and protect the environment |
ePropulsion is committed to providing a green boating drive system helping to alleviate the environmental problems we face today.
Keep Your Hands and Clothes Clean
Annoyed by the oil stain on your shirts or hands? ePropulsion Navy 6.0 leaves no oil stain at all.
Entirely Avoid Exhaust Inhalation
There is no combustion so there is no way that you will inhale any toxic exhaust fumes that you get from a conventional petrol combustion outboard engine.
100% Exhaust Free – ePropulsion provides you with a 100% exhaust and emission free boating experience
ePropulsion Navy 6.0 Specs
Input Power | Running Time (Economical Speed) |
6 kW | 4 Hours |
Equivalent Horsepower | Running Time (Full Speed) |
9.9 Hp | 1 Hour |
Motor Weight (Long Shaft) | Shaft Length (Long Shaft) |
31.1 Kg | 76.5 cm |
Motor Weight (Short Shaft) | Shaft Length (Short Shaft) |
30.5 Kg | 64 cm |
Battery Weight | Warranty |
31.5 kg | 2 years, basic motor1 year, battery
(non-commercial use) |
Battery Capacity | Minimum Battery Quantity |
3042 Wh | 2 |
Safety
- Kill stop switch
- IP67 ingress protection
- Propeller collision emergency stop
- Reinforced transom mounting
- Low battery indicator
- Over temperature protection
Battery
- Lithium-ion polymer battery
- 46.8 V nominal voltage
- 54.6 V final charging voltage
- 39 V cut-off voltage
- 0°C – 40°C charging temperature
- -20°C – 65°C discharging temperature
- Over 80% capacity after 500 cycles of 100% DOD
- 3 hr charging time (Fast charger)
- Battery management system
Convenience
- Integrated display
- Wired remote control available
Drive
- Rated RPM 1550
- 1288 N / 289.5 lbs static thrust
- 57% overall efficiency
- Water cooling
- Direct drive
- Field-oriented motor control
- Trim angles including 0°, 5°, 10° & 15°
- Tilt angle 60°
- 32 Ă— 27.4 cm / 12.6 Ă— 10.8 inches high pitch propeller
- 34 x 21.6 cm / 13.4 x 8.5 inches low pitch propeller
- 360° tiller steering, direction lockable
What’s in the box
- Main Engine
- Tiller shaft Lanyard
- Main Switch Cable
- Link Arm
- Wrench set
- Warranty Card
- User Manual
If you have got this far and happy to go ahead simply add this to the basket and also add
- Battery size you require *
- Top mount / side mount remote control or tiller
- Charger
Your solution will be sent on a small pallet and can be delivered anywhere in the UK.
If you still have questions, please call 07595638185 and we are open 7 days a week
*This item might require an extension cable depending on where it is placed
